Shenzhen Siwo Precision Machinery Co., Ltd. (Sowotech) is a Sino-foreign cooperative company focusing on research and development, design, manufacture and service of high-tech automation equipment. The company focuses on the development of high-performance, automated production equipment for the PCB, FPC, IC carrier board and touch screen markets. The most important product for the PCB market is the automatic cut-sheet laminator technology, as well as mylar peeling equipment and vacuum laminators. The employees are outstanding, young, enthusiastic, and are the driving force and source of the company’s long-term development.

FCM-30 & 30H

Features:

  • Dryfilm laminators available for all applications
  • Thin flex 25 micron + Copper
  • Back panels up to 0.5”
  • Large width machines
  • Integration with preheater & post laminator for turn-key, process recipe- controlled film lamination process

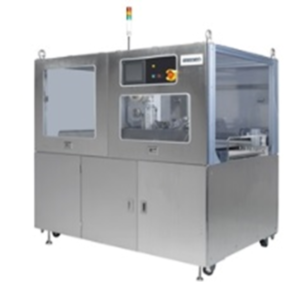

Mylar Peeler PL-25

Features:

  • Double side peeling of mylar film
  • Auto centering at entrance
  • Very reliable peeling utilizing knurling wheel, auto sticky tape lift & mechanical grippers
  • Row of photosensors pick up any mispeel situation
  • Mispeeled panels are stored in a buffer
  • 50 micron cores to 7mm thick panels

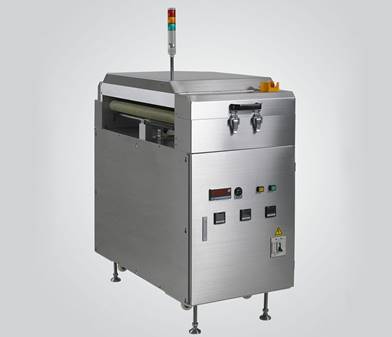

Preheaters and Post Laminators

Features:

  • Preheaters help increase process window with thick panels
  • Post laminators help dryfilm conformance and adhesion on uneven topographies
  • Top cover opens for easy access for cleaning
  • Heat transfer via heated rollers




    Also available !



Automatic Vacuum Laminating Machine

Features:

  •  Dryfilm sheet lamination utilizing flat platens and vacuum
  •  Dryfilm roll to sheet
  •  Various configurations are available
